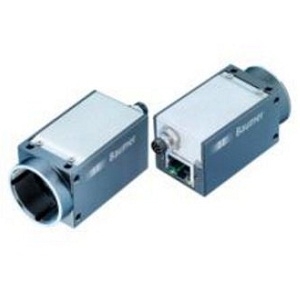

VCXG-53M

Scientific & Industrial Camera by Baumer
77 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Baumer.

The VCXG-53M from Baumer is a Scientific & Industrial Camera with Mega Pixels 5 MP, Frame Rate 23 to 28 fps, Wavelength Range 536 nm, Bit Depth 8 Bit, 10 Bit. More details for VCXG-53M can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VCXG-53M
  • Manufacturer
    Baumer

Applications

  • Application
    Industrial
  • Application Industry
    Industrial Inspection and Automation

Connections & Interface

  • Data Interface
    Gigabit Ethernet (GigE)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    5 MP
  • Resolution
    2592(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    23 to 28 fps
  • Wavelength Range
    536 nm
  • Pixel Size(H x V)
    4.8 x 4.8 µm
  • Exposure Time :
    0,02 to 1000 ms
  • Sensor Format
    1 Inches
  • Bit Depth
    8 Bit, 10 Bit
  • Scanning Method
    Progressive Scanning
  • Color / Bit Depth
    8 Bit, 10 Bit
  • Sensor Configurations
    Monochrome, B/W
  • Cooling Method
    Uncooled
  • Gain Range
    0 to 12 dB
  • Operating Humidity
    10% to 90% (Non-Condesioning)
  • Pixels
    5 MP
  • Trigger Mode
    Free Running, Trigger
  • Compliances
    CE
  • Camera Window
    Zinc Die Casting, Nickel-Plated, IP 40
  • Chrome
    Monochrome, B/W
  • Lens Mount
    C-Mount
  • Power Supply
    12 to 48 VDC
  • Power Consumption
    2.8 to 3.7 W
  • Sensor Manufacturer
    ON Semiconductor
  • Sensor Model Number
    PYTHON5000

Physical Properties

  • Dimension
    29 x 29 x 49 mm (W x H x D)
  • Weight
    120 g

Temperature

  • Operating Temperature
    5 to 65 Degree C
