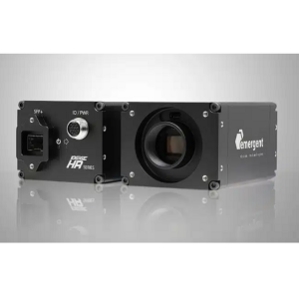

HR-8000-SB-U Series

Scientific & Industrial Camera by Emergent Vision Technologies, Inc.
127 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Emergent Vision Technologies, Inc..

The HR-8000-SB-U Series from Emergent Vision Technologies, Inc. is a Scientific & Industrial Camera with Mega Pixels 8.1 MP, Frame Rate 100 to 145 fps, Bit Depth 8 Bit, 12 Bit. More details for HR-8000-SB-U Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    HR-8000-SB-U Series
  • Manufacturer
    Emergent Vision Technologies, Inc.
  • Description
    10 GigE Area-Scan Cameras HR Series with 8.1 Mega Pixel

Applications

  • Application
    Industrial inspection, Automation, Intelligent Transportation Systems, Logistics, Virtual reality, Volumetric capture, Referee Assist
  • Application Industry
    Industrial Inspection and Automation, Medical and Healthcare, Traffic Management and Intelligent Transportation Systems (ITS), Outdoor and Environmental Monitoring, Entertainment and Media

Connections & Interface

  • Data Interface
    10GigE SFP+, GenICam

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    8.1 MP
  • Resolution
    2840(H) x 2840(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    100 to 145 fps
  • Pixel Size(H x V)
    2.74 x 2.74 µm
  • Exposure Time :
    5 µs to 1 s
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    74 dB
  • Bit Depth
    8 Bit, 12 Bit
  • Sensor Configurations
    Monochrome, Color
  • Trigger Mode
    Software, External (Pulse or Edge)
  • Warranty
    2 Years
  • Compliances
    CE, FCC, RoHS, WEEE
  • Compatible System
    Win10 (64 bit), Linux (64 bit)
  • Chrome
    Monochrome, Color, Ultraviolet
  • Integration Time
    5 µs to 1 s
  • Lens Mount
    C-Mount
  • Voltage(DC)
    12 V
  • Power Consumption
    9 W
  • RoHs
    Yes
  • Sensor Manufacturer
    Sony
  • Sensor Model Number
    IMX487

Physical Properties

  • Dimension
    97 x 66 x 52 mm
  • Weight
    500 g

Temperature

  • Operating Temperature
    0 to 45 Degree C
  • Storage Temperature
    -30 to 60 Degree C
