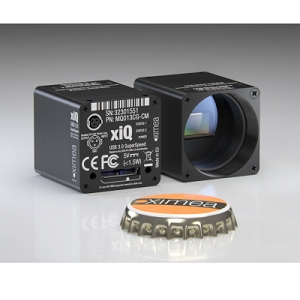

MQ022CG-CM

Scientific & Industrial Camera by XIMEA GmbH
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to XIMEA GmbH.

The MQ022CG-CM from XIMEA GmbH is a Scientific & Industrial Camera with Mega Pixels 2.2 MP, Frame Rate 170 fps, Wavelength Range 400 to 1000 nm, Bit Depth 10 Bit. More details for MQ022CG-CM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MQ022CG-CM
  • Manufacturer
    XIMEA GmbH

Applications

  • Application
    Intelligent Transportation Systems (ITS), Open Road Tolling And Traffic Monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive Crash Testing, OCR/ OCV, 3D Scanning, Robotic Arms, Material And Life Science Microscopy, Ophthalmology And Retinal Imaging, Medical Imaging, Flat Panel Inspection, Dental, Kiosks, Security, Biometrics
  • Application Industry
    Traffic Management and Intelligent Transportation Systems (ITS), Industrial Inspection and Automation, Entertainment and Media, Medical and Healthcare, Outdoor and Environmental Monitoring, Scientific and Research, Consumer Electronics, Security and Surveillance

Connections & Interface

  • Data Interface
    USB
  • Peripheral Communications
    Hirose SR38-4R-3S(71)

General Parameters

  • Camera Type
    Area Scan Cameras
  • Mega Pixels
    2.2 MP
  • Resolution
    2048(H) x 2048(V)
  • Sensor Type
    CMOS
  • Shutter Type
    Global Shutter
  • Frame Rate
    170 fps
  • Wavelength Range
    400 to 1000 nm
  • Pixel Size(H x V)
    5.5 x 5.5 µm(H x V)
  • Active Image Area
    11.27 × 6 mm
  • Sensor Format
    2/3 Inches
  • Dynamic Range
    60 dB
  • Bit Depth
    10 Bit
  • Sensor Configurations
    Color
  • Cooling Method
    Uncooled
  • Operating Humidity
    80% non-condensing
  • Pixels
    2.2 MP
  • Trigger Mode
    Continuous, software trigger, hardware trigger
  • Compliances
    CE
  • ADC Resolution
    10 Bit
  • Compatible System
    Windows 7 SP1 (x86 and x64), Linux Ubuntu, ARM, Mac OS X
  • Chrome
    Color
  • Lens Mount
    CS- Mount
  • Power Consumption
    1.5 W
  • Optical Diagonal
    12.8 mm
  • RoHs
    Yes
  • Sensor Model Number
    CMV2000

Physical Properties

  • Dimension
    26 x 26 x 30 mm
  • Weight
    31 grams

Temperature

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    -30 to 60 Degree C
