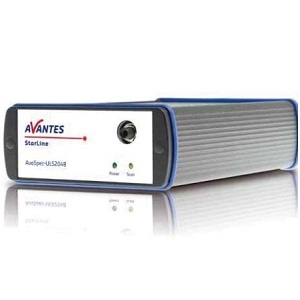

AvaSpec-ULS2048L

Spectrometer by Avantes

Note: Your Quotation Request will be directed to Avantes.

The AvaSpec-ULS2048L from Avantes is a Spectrometer with Wavelength Range 200 to 1100 nm, Spectral Resolution 0.05 to 20 nm. More details for AvaSpec-ULS2048L can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AvaSpec-ULS2048L
  • Manufacturer
    Avantes
  • Description
    StarLine Versatile Fiber-optic Spectrometer

Applications

  • Applications
    deep-UV measurements

Connections & Interface

  • Interface
    USB 2.0 high-speed, 480 Mbps RS-232, 115.200 bps

General Parameters

  • Measuring Techniques
    UV/VIS
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    200 to 1100 nm
  • Spectral Resolution
    0.05 to 20 nm
  • Spectrum Band
    UV/VIS
  • A/D Resolution
    Digitilizer: 16-bit, 2 MHz Band
  • Integration Time
    1.05 ms - 10 minutes
  • Pixels
    2048 pixels
  • Noise Ratio
    200:1
  • Power Requirements
    External Power Supply: 250 mA
  • Spectral Irradiance Sensitivity
    310,000 counts/µW

Physical Properties

  • Weight
    716 grams
  • Dimension
    175 x 110 x 44 mm

Technical Documents

Click to view more product details on manufacturer's website
