L7110190

Spectrometer by PerkinElmer Inc
20 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PerkinElmer Inc.

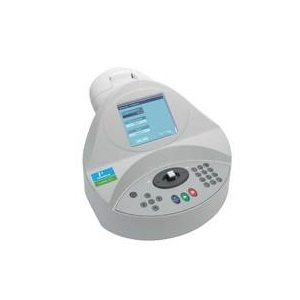

The L7110190 from PerkinElmer Inc is a Spectrometer with Wavelength Range 190 to 1100 nm, Spectral Resolution 5 nm. More details for L7110190 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L7110190
  • Manufacturer
    PerkinElmer Inc
  • Description
    USB4000-XR1-ES Extended Range Spectrometer for UV-NIR applications with Enhanced Sensitivity

Connections & Interface

  • Interface
    Xenon Flash, USB, SD Card (optional), Bluetooth® (optional), Printer (optional)

General Parameters

  • Measuring Techniques
    Molecular Spectroscopy
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    190 to 1100 nm
  • Spectral Resolution
    5 nm
  • Spectrum Band
    UV/Visible
  • Dark Noise
    Noise: 0.005 peak to peak 0.002 rms
  • Power Requirements
    100 to 250 V, 50/60 Hz, Max 30 VA
  • Scan Range
    200 to 950 nm
  • Wavelength accuracy
    ±2 nm
  • Wavelength Reproducibility
    1 nm

Temperature

  • Operating Temperature
    15 to 35 Degree C

Physical Properties

  • Weight
    3.2 kg (7.1 lb)
  • Dimension
    340 x 170 x 330 mm(WxHxD)
  • Display Dimension
    11.5 cm x 8.8 cm
