DQPlus

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

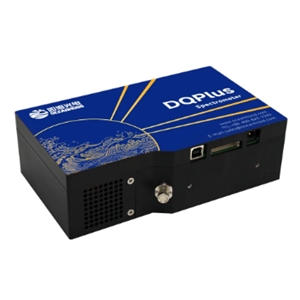

The DQPlus from Oceanhood is a Spectrometer with Wavelength Range 200 to 1100 nm, Spectral Resolution 0.3 to 2.2 nm. More details for DQPlus can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DQPlus
  • Manufacturer
    Oceanhood
  • Description
    200 to 1100 nm 18 bit spectrometer with 0.3 to 2.2 nm Resolution

Applications

  • Applications
    Daylight Induced Chlorophyll Fluorescence Detection in Agriculture, SIF Measurement (Solar Induced Chlorophyll Fluorescence), Solar Cell Quantum Efficiency Measurement, Gemstone Transmission/Reflectance Measurement, Semiconductor Plasma Etching Endpoint,

Connections & Interface

  • Connector
    SMA 905
  • Fiber optic connector
    SMA 905
  • Interface
    USB 2.0, RS-232

General Parameters

  • Measuring Techniques
    UV Spectroscopy, VIS Spectroscopy, NIR Spectroscopy, CCD Spectroscopy, Absorbance, Raman Spectroscopy, Plasma Spectroscopy, Fluorescence Spectroscopy, Irradiance, Molecular Spectroscopy
  • Spectrometer Type
    Modular, Portable
  • Wavelength Range
    200 to 1100 nm
  • Spectral Resolution
    0.3 to 2.2 nm
  • Spectrum Band
    UV-VIS-NIR
  • A/D Resolution
    18 bit
  • Integration Time
    8 ms to 30 minutes
  • Stray Light :
    <0.3%
  • Pixels
    1024 x 64 pixels
  • Dynamic Range
    33000:1
  • Entrance Slit
    10 µm, 25 µm, 50 µm
  • Grating :
    300 g/mm, 600 g/mm, 900 g/mm, 1200 g/mm
  • Image Sensor
    CCD
  • Input Focal length
    100 mm
  • Noise Ratio
    1100:1
  • Output Focal length
    100 mm
  • Relative Humidity
    20 to 85%

Temperature

  • Operating Temperature
    0 to 40 Degree C

Physical Properties

  • Weight
    1.24 kg
  • Dimension
    181 x 111.5 x 55 mm
