NirIn

Spectrometer by Oceanhood
49 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Oceanhood.

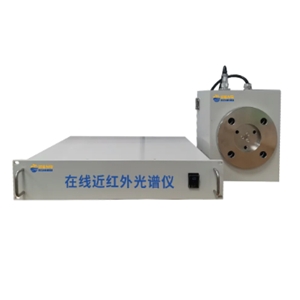

The NirIn from Oceanhood is a Spectrometer with Wavelength Range 900 to 1700 nm, Spectral Resolution 5 nm. More details for NirIn can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    NirIn
  • Manufacturer
    Oceanhood
  • Description
    900 to 1700 nm Near-infrared process spectrometer with 5 nm Resolution

Applications

  • Applications
    API Quantitative Analysis, Process Particle Size Analysis, Process Moisture Content Detection, Process Mixing Uniformity Detection

Connections & Interface

  • Interface
    USB 2.0, Serial Port

General Parameters

  • Measuring Techniques
    NIR Spectroscopy, SWIR Spectroscopy, Absorption Spectroscopy
  • Spectrometer Type
    Benchtop
  • Wavelength Range
    900 to 1700 nm
  • Spectral Resolution
    5 nm
  • Spectrum Band
    NIR, SWIR
  • Integration Time
    1 to 1000 ms
  • Relative Humidity
    5 to 80%

Temperature

  • Operating Temperature
    -10 to 50 Degree C

Physical Properties

  • Dimension
    430 x 328 x 88.1 mm (Main), 250 x 200 x 250 mm (Sampling)
Click to view more product details on manufacturer's website
