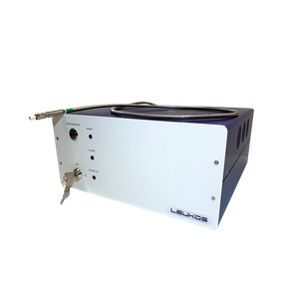

ELECTRO 250 VISIR

Supercontinuum Source by Leukos
31 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leukos.

The ELECTRO 250 VISIR from Leukos is a Supercontinuum Source with Repetition Rate 250 kHz, Pulse Width 1 ns, Output Power >650 mW. More details for ELECTRO 250 VISIR can be seen below.

Product Specifications

Product Details

  • Part Number
    ELECTRO 250 VISIR
  • Manufacturer
    Leukos
  • Description
    250 kHz VIS, IR Single Mode Pulsed Supercontinuum Source

General Parameters

  • Oscillation Mode
    Pulsed
  • Package Type
    Benchtop / Rackmount
  • Repetition Rate
    250 kHz
  • Pulse Width
    1 ns
  • Spectrum Band
    VIS, IR
  • Output Power
    >650 mW
  • Pulse Energy
    >3 µJ
  • Laser Class
    Class 4
  • Polarization
    Unpolarized
  • Average Power
    >650 mW
  • Power Stability
    ±1%
  • Spectral Bandwidth
    <450 to 2600 nm
  • Supply Voltage (AC)
    100 to 240 VAC, 50 to 60 Hz
  • Timing Jitter
    10 ns

Applications

  • Application
    Optical Component Testing, OCT, Spectroscopy, Metrology, LIDAR, High Resolution Imaging

Environmental Conditions

  • Operating Temperature
    5 to 40 Degree C

Fiber Parameters

  • Beam Mode
    Single Mode
  • Fiber Length
    1 m
  • Fiber Type
    Fiber Laser

Connections & Interface

  • Fiber Connectors
    FC/APC
  • Interface
    Front panel and USB

Physical Properties

  • Dimension
    485 x 250 x 134 mm (L x W x H)
  • Weight
    <8 kg
