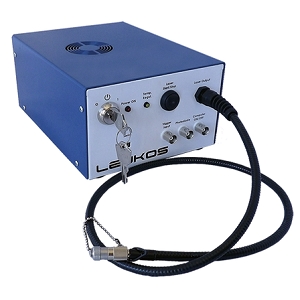

SAMBA 450

Supercontinuum Source by Leukos
31 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leukos.

The SAMBA 450 from Leukos is a Supercontinuum Source with Repetition Rate 25 to 30 kHz, Pulse Width 1 ns, Output Power >150 mW. More details for SAMBA 450 can be seen below.

Product Specifications

Product Details

  • Part Number
    SAMBA 450
  • Manufacturer
    Leukos
  • Description
    25 to 30 kHz UV-VIS-NIR Single Mode Pulsed Supercontinuum Source

General Parameters

  • Oscillation Mode
    Pulsed
  • Package Type
    Benchtop / Rackmount
  • Repetition Rate
    25 to 30 kHz
  • Pulse Width
    1 ns
  • Spectrum Band
    UV-VIS-NIR
  • Output Power
    >150 mW
  • Pulse Energy
    Up to 7 µJ
  • Visible Power
    >35 W
  • Laser Class
    Class 3B
  • Polarization
    Unpolarized
  • Average Power
    >150 mW
  • Power Stability
    ±1%
  • Spectral Bandwidth
    <450 to 2400 nm
  • Supply Voltage (AC)
    100 to 240 VAC, 50 to 60 Hz
  • Timing Jitter
    <2 µs
  • Note
    Triggerable range: 10 Hz to 20 kHz

Applications

  • Application
    High Resolution Imaging, Flow Cytometry, OCT, Microscopy, Optical Component Characterization

Environmental Conditions

  • Operating Temperature
    5 to 45 Degree C

Fiber Parameters

  • Beam Mode
    Single Mode
  • Fiber Length
    1 m
  • Fiber Type
    Fiber Laser

Connections & Interface

  • Fiber Connectors
    FC/APC
  • Interface
    Front panel and USB

Physical Properties

  • Dimension
    200 x 152 x 95 mm (L x W x H)
  • Weight
    <3 kg

Technical Documents
Click to view more product details on manufacturer's website
