ASE-C0-RS-35.5-NO-FCA

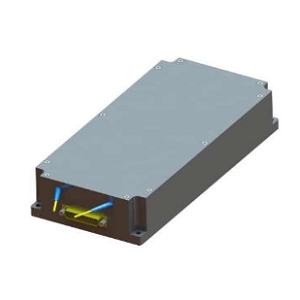

Supercontinuum Source by Nuphoton Technologies, Inc.
10 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nuphoton Technologies, Inc..

The ASE-C0-RS-35.5-NO-FCA from Nuphoton Technologies, Inc. is a Supercontinuum Source with Spectral Range 1540 to 1565 nm, Output Power 35.5 dBm. More details for ASE-C0-RS-35.5-NO-FCA can be seen below.

Product Specifications

Product Details

  • Part Number
    ASE-C0-RS-35.5-NO-FCA
  • Manufacturer
    Nuphoton Technologies, Inc.
  • Description
    1540 to 1565 nm NIR CW Single Mode Amplified Spontaneous Emission Source

General Parameters

  • Oscillation Mode
    CW
  • Package Type
    Pigtailed Module
  • Spectral Range
    1540 to 1565 nm
  • Spectrum Band
    NIR
  • Output Power
    35.5 dBm
  • Output Power Monitoring Range
    23 to 36 dBm
  • Control Mode
    AOPC (Constant Output Power Control), ACC (Constant Pump Current Control)
  • DC Supply Voltage
    24 V
  • Note
    Output Power Measurement Accuracy: <±0.3 dB, Polarization Dependence: <0.3 dB

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C

Fiber Parameters

  • Beam Mode
    Single Mode
  • Fiber Core Diameter
    900 µm
  • Fiber Length
    1 m
  • Fiber Type
    Fiber Laser

Connections & Interface

  • Fiber Connectors
    FC/APC
  • Interface
    RS-232

Physical Properties

  • Dimension
    200 x 100 x 49 mm

Technical Documents
Click to view more product details on manufacturer's website
