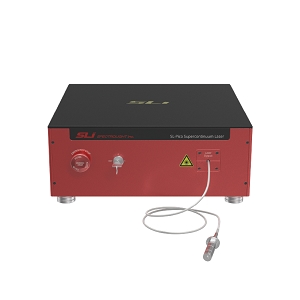

SL80V

Supercontinuum Source by Spectrolight

Note: Your Quotation Request will be directed to Spectrolight.

The SL80V from Spectrolight is a Supercontinuum Source with Repetition Rate 0.01 to 200 MHz, Pulse Width <300 ps, Spectral Range 430 to 2400 nm, Output Power 8 W. More details for SL80V can be seen below.

Product Specifications

Product Details

  • Part Number
    SL80V
  • Manufacturer
    Spectrolight
  • Description
    430 to 2400 nm Pico-second Supercontinuum Laser for Fluorescence Microscopy

General Parameters

  • Oscillation Mode
    Pulsed
  • Package Type
    Benchtop / Rackmount
  • Repetition Rate
    0.01 to 200 MHz
  • Pulse Width
    <300 ps
  • Spectral Range
    430 to 2400 nm
  • Spectrum Band
    UV-VIS-NIR
  • Output Power
    8 W
  • Beam Diameter
    2 mm
  • Visible Power
    1 W
  • Beam Divergence
    <1 mrad (half angle)
  • Beam Quality Factor (M2)
    <1.1
  • Polarization
    Unpolarized
  • Power Stability
    <1%
  • Supply Voltage (AC)
    100 to 240 VAC, 50 to 60 Hz

Applications

  • Application
    Low-Noise OCT, Fluorescence Microscopy, Nanophotonics, Semiconductor Inspection, Ultra-High-Resolution Imaging Capabilities

Fiber Parameters

  • Fiber Length
    1.5 m
  • Fiber Type
    Fiber-Coupled

Connections & Interface

  • Interface
    USB 2.0

Physical Properties

  • Dimension
    440 x 470 x 150 mm (L x W x H)

Technical Documents

Click to view more product details on manufacturer's website
