SLP-0280

Supercontinuum Source by SuperLight Photonics

Note: Your Quotation Request will be directed to SuperLight Photonics.

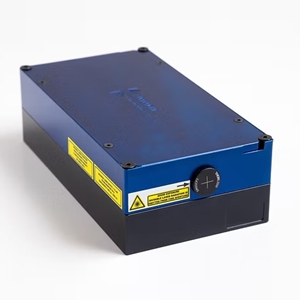

The SLP-0280 from SuperLight Photonics is a Supercontinuum Source that operates at a wavelength of 1750 nm. It has a pulse width of 25 fs and wavelength accuracy of ± 200 nm. This supercontinuum source leverages patented patterned alternating dispersion (PAD) technology to enable non-linear pulse compression for broadband light generation. It is class 3 laser safety compliant and uses non-linear PIC-based pulse compression technology. This supercontinuum source is ideal for terahertz generation, non-destructive imaging, material characterization, biomedical, pump-probe spectroscopy, non-linear microscopy, two-photon excitation & second harmonic generation microscopy, and transient absorption microscopy applications.

Product Specifications

Product Details

  • Part Number
    SLP-0280
  • Manufacturer
    SuperLight Photonics
  • Description
    1750 nm Supercontinuum Source for Spectroscopy Applications

General Parameters

  • Oscillation Mode
    Pulsed
  • Package Type
    Benchtop / Rackmount
  • Repetition Rate
    100 MHz
  • Pulse Width
    25 fs
  • Spectral Range
    1750 nm ±200 nm
  • Spectrum Band
    SWIR
  • Output Power
    50 mW
  • Beam Diameter
    3.6 mm
  • Pulse Energy
    500 pJ
  • DC Supply Voltage
    12 V
  • Laser Class
    Class 3
  • Power Consumption
    15 W
  • Power Stability
    0.005
  • Spectral Bandwidth
    400 nm
  • Warm up time
    <60 s

Applications

  • Application
    Terahertz Generation in High-end Spectroscopy, Non-destructive Imaging Applications, Material Characterization and Biomedical Applications, Pump-probe Spectroscopy, Non-linear Microscopy Such as 2P (Two-photon Excitation Microscopy) or SHG (Second Harmonic Generation) Microscopy, and Transient Absorption Microscopy

Environmental Conditions

  • Operating Temperature
    20 Degree C

Fiber Parameters

  • Fiber Type
    Free Space

Physical Properties

  • Dimension
    174 x 96 x 54 mm (W x H x L)
  • Weight
    1 kg (Laser Head)
