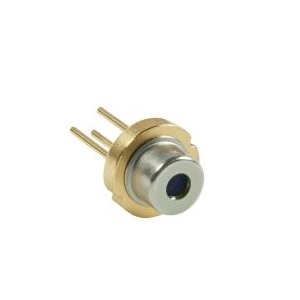

SLD-1550-9MM

Superluminescent Diode by Nolatech
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Nolatech.

The SLD-1550-9MM from Nolatech is a Superluminescent Diode with Wavelength 1510 to 1550 nm, Output Power 0.2 to 10 mW, Bandwidth (FWHM) 30 to 35 nm, Forward Voltage 2.5 V, Forward Current 250 to 400 mA. More details for SLD-1550-9MM can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLD-1550-9MM
  • Manufacturer
    Nolatech
  • Description
    Superluminescent Diode 1550nm 5mW

General Parameters

  • Type
    Free Space SLED
  • Wavelength
    1510 to 1550 nm
  • Center Wavelength
    1532 nm
  • Output Power
    0.2 to 10 mW
  • Bandwidth (FWHM)
    30 to 35 nm
  • Polarization Ratio
    17 dB
  • Forward Voltage
    2.5 V
  • Forward Current
    250 to 400 mA
  • PD Monitor Current
    40 to 1000 µA
  • Photo Diode Dark Current
    0.1 µA
  • TEC Current
    1.4 A
  • TEC Voltage
    2.7 V
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Package Type
    TO-Can
  • Package
    9mm

Temperature

  • Operating Temperature
    -40 to 70 Degree C
  • Storage Temperature
    -40 to 85 Degree C
