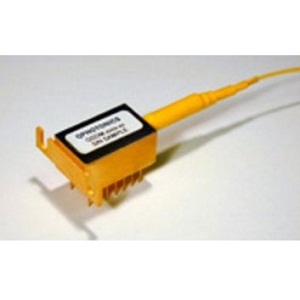

QSDM-1050-2

Superluminescent Diode by QPhotonics
64 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QSDM-1050-2 from QPhotonics is a Superluminescent Diode with Wavelength 1040 to 1060 nm, Output Power 1 to 2 mW, Bandwidth (FWHM) 30 to 35 nm(Spectral Width), Forward Voltage 2 to 2.5 V, Forward Current 275 to 300 mA. More details for QSDM-1050-2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSDM-1050-2
  • Manufacturer
    QPhotonics
  • Description
    Fiber coupled superluminescent diode, 1.5mW @ 1050nm, QSDM-1050-2

Fiber Parameters

  • Fiber Mode
    Singlemode

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    1040 to 1060 nm
  • Center Wavelength
    1049.9 nm
  • Output Power
    1 to 2 mW
  • Bandwidth (FWHM)
    30 to 35 nm(Spectral Width)
  • Operation Mode
    CW Lasers
  • Forward Voltage
    2 to 2.5 V
  • Forward Current
    275 to 300 mA
  • PD Monitor Current
    0.05 to 1 mA
  • Residual Spectral Modulation depth(Ripple)
    5 to 20%
  • Reverse Voltage(PD)
    5 to 20 V
  • Ripples
    3%
  • TEC Current
    1.5 A
  • TEC Voltage
    3.8 V
  • Thermistor B Constant
    3900 K
  • Thermistor Resistance
    10 kOhms
  • Operating Voltage
    1.55 V
  • Operating Current
    133 mA
  • Package Type
    DIL
  • Package
    14-Pin

Temperature

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    0 to 65 Degree C
  • Storage Temperature
    -40 to 75 Degree C

Applications

  • Application
    Sensing, Measurements, Coherence tomography.

Connections & Interface

  • Connector
    FC/APC
