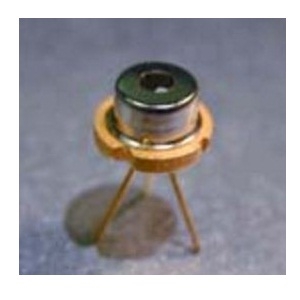

QSDM-1050-9

Superluminescent Diode by QPhotonics
64 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QSDM-1050-9 from QPhotonics is a Superluminescent Diode with Wavelength 1040 to 1060 nm, Output Power 9 to 12 mW, Bandwidth (FWHM) 33.44 to 35 nm(Spectral Width), Forward Voltage 1.5 to 2.5 V, Forward Current 160 to 220 mA. More details for QSDM-1050-9 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSDM-1050-9
  • Manufacturer
    QPhotonics
  • Description
    Superluminescent diode, 9mW @ 1050nm, QSDM-1050-9

General Parameters

  • Type
    Free Space SLED
  • Wavelength
    1040 to 1060 nm
  • Center Wavelength
    1057 nm
  • Output Power
    9 to 12 mW
  • Bandwidth (FWHM)
    33.44 to 35 nm(Spectral Width)
  • Operation Mode
    CW Laser, Pulsed Laser
  • Beam Divergence Parallel
    10 to 20 Degree
  • Beam Divergence Perpendicular
    40 Degree
  • Forward Voltage
    1.5 to 2.5 V
  • Forward Current
    160 to 220 mA
  • PD Monitor Current
    0.07 1.53 mA
  • Ripples
    3%
  • Operating Voltage
    1.91 V
  • Operating Current
    158 mA
  • Package Type
    TO-Can
  • Package
    9 mm

Temperature

  • Operating Temperature
    -40 to 40 Degree C

Applications

  • Application
    Sensing, Measurements, Coherence tomography
