QSDM-1300-5

Superluminescent Diode by QPhotonics
64 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to QPhotonics.

The QSDM-1300-5 from QPhotonics is a Superluminescent Diode with Wavelength 1300 to 1320 nm, Output Power 4 to 5 mW, Bandwidth (FWHM) 20 to 31 nm(Spectral Width), Forward Voltage 1.8 to 2.4 V, Forward Current 275 to 450 mA. More details for QSDM-1300-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    QSDM-1300-5
  • Manufacturer
    QPhotonics
  • Description

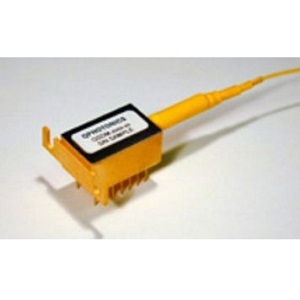

    Fiber coupled superluminescent diode, 5mW @ 1300nm, QSDM-1300-5

Fiber Parameters

  • Fiber Mode
    Singlemode
  • Fiber Type
    SMF-28

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    1300 to 1320 nm
  • Center Wavelength
    1304 nm
  • Output Power
    4 to 5 mW
  • Bandwidth (FWHM)
    20 to 31 nm(Spectral Width)
  • Operation Mode
    CW Laser
  • Forward Voltage
    1.8 to 2.4 V
  • Forward Current
    275 to 450 mA
  • PD Monitor Current
    0.05 to 1 mA
  • Residual Spectral Modulation depth(Ripple)
    5 to 15 %
  • Reverse Voltage(PD)
    5 to 20 V
  • TEC Current
    1.5 A
  • TEC Voltage
    3.8 V
  • Thermistor B Constant
    3900 K
  • Thermistor Resistance
    10 kOhms
  • Operating Voltage
    1.76 V
  • Operating Current
    440 mA
  • Package Type
    DIL
  • Package
    14-Pin

Temperature

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    0 to 65 Degree C
  • Storage Temperature
    -40 to 75 Degree C

Applications

  • Application
    Sensing, Measurements, Coherence tomography

Connections & Interface

  • Connector
    FC/APC
