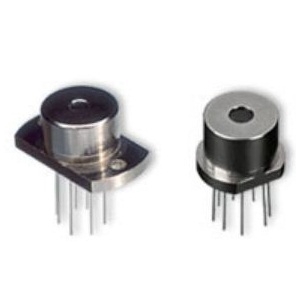

SLD-260-HP-TOW-PD-670

Superluminescent Diode by Superlum
89 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Superlum.

The SLD-260-HP-TOW-PD-670 from Superlum is a Superluminescent Diode with Wavelength 660 to 680 nm, Output Power 15 mW, Forward Voltage 2.6 to 3 V, Forward Current 220 mA. More details for SLD-260-HP-TOW-PD-670 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLD-260-HP-TOW-PD-670
  • Manufacturer
    Superlum
  • Description
    High power TOW-packaged free-space SLDs at 670 nm

Fiber Parameters

  • Fiber Mode
    Polarization Maintaining

General Parameters

  • Type
    Free Space SLED
  • Wavelength
    660 to 680 nm
  • Center Wavelength
    660 to 680 nm
  • Output Power
    15 mW
  • Polarization Ratio
    20 dB
  • Forward Voltage
    2.6 to 3 V
  • Forward Current
    220 mA
  • PD Monitor Current
    100 µA
  • Residual Spectral Modulation depth(Ripple)
    1 to 2 %
  • TEC Current
    1.2 A
  • TEC Voltage
    3.5 V
  • Package Type
    TOW
  • Note
    Spectral width: 6 to 7.5 nm

Temperature

  • Operating Temperature
    -55 to 55 Degree C
  • Storage Temperature
    -55 to 85 Degree C

Applications

  • Application
    Optical Sensors, Optical Coherence Tomography, Optical Measurements, Atomic Force Microscopy, Low speckle illumination
