SLD-M381

Superluminescent Diode by Superlum

Note: Your Quotation Request will be directed to Superlum.

The SLD-M381 from Superlum is a Superluminescent Diode with Wavelength 825 to 855 nm, Output Power 100 to 110 mW, Forward Voltage 2.8 V, Forward Current 750 to 900 mA. More details for SLD-M381 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SLD-M381
  • Manufacturer
    Superlum
  • Description

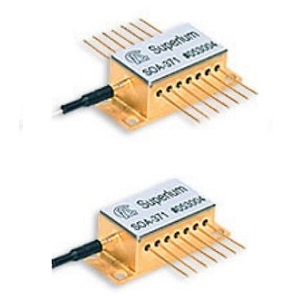

    High-power SLD modules at 840 nm, 855 nm and 1065 nm with MM fiber pigtails

Fiber Parameters

  • Fiber Mode
    Multi-Mode

General Parameters

  • Type
    Fiber-Coupled SLED
  • Wavelength
    825 to 855 nm
  • Output Power
    100 to 110 mW
  • Forward Voltage
    2.8 V
  • Package Type
    Butterfly
  • Forward Current
    750 to 900 mA
  • Center Wavelength
    825 to 855 nm
  • TEC Current
    2.5 A
  • TEC Voltage
    3.8 V
  • Note
    Spectral width: 12 to 15 nm

Temperature

  • Operating Temperature display
    -55 to 60 Degree C
  • Storage Temperature
    -55 to 85 Degree C

Applications

  • Application
    Fiberoptic Sensors, Optical Measurements, low speckle illumination

Connections & Interface

  • Connector
    FC/APC

Technical Documents

Click to view more product details on manufacturer's website
