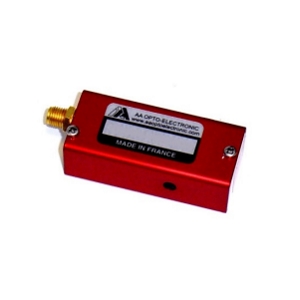

MQ180-A0,2-266.300

Acousto-Optic Modulator by AA Opto-Electronic
75 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AA Opto-Electronic.

The MQ180-A0,2-266.300 from AA Opto-Electronic is a Acousto-Optic Modulator with Operating Temperature 10 to 40 Degree C, Storage Temperature -40 to 65 Degree C, Modulation Bandwidth 48 MHz, Diffraction Efficiency 0.85, Rise Time 9.9 to 17.6 ns. More details for MQ180-A0,2-266.300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MQ180-A0,2-266.300
  • Manufacturer
    AA Opto-Electronic
  • Description
    Free Space AO Modulator/Shifter from 266 to 300 nm

Fiber Parameters

  • Fiber Type
    Free Space

Temperature

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -40 to 65 Degree C

Physical Properties

  • Dimension
    59.5 x 22.4 x 17.3 mm
  • Weight
    50 g

Connections & Interface

  • RF Connector
    SMA, SMA - Female

General Parameters

  • Acousto-Optic Material
    Fused Silica
  • Modulation Bandwidth
    48 MHz
  • Diffraction Efficiency
    0.85
  • Separation Angle
    8 to 9 mrad
  • Rise Time
    9.9 to 17.6 ns
  • Applications
    Intensity/amplitude modulation, Frequency Shifter
  • Beam Diameter
    0.09 to 0.16 mm
  • Optical Wavelength
    266 to 300 nm
  • Colors
    UV
  • Acoustic Velocity
    5.96µ mm / µsec
  • Active Aperture
    0.2 x 1 mm2
  • RF Power
    2 W
  • Extinction Ratio
    30 dB
  • Fall Time
    9.9 to 17.6 ns
  • Frequency Shift
    ±180 MHz
  • Input Impedance
    50 Ohms
  • Polarization
    Linear Vertical
  • Power Density
    0.5 W/mm²
  • RoHS
    Yes
  • Transmission
    95 to 98 %
  • VSWR
    1.20:1
