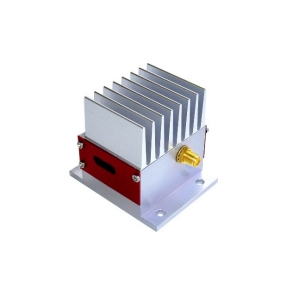

MQ200-A1,5-266.300

Acousto-Optic Modulator by AA Opto-Electronic
75 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AA Opto-Electronic.

The MQ200-A1,5-266.300 from AA Opto-Electronic is a Acousto-Optic Modulator with Operating Temperature 10 to 40 Degree C, Storage Temperature -40 to 65 Degree C, Modulation Bandwidth 14.5 MHz, Rise Time 33 to 137 ns, Optical Wavelength 266 to 300 nm. More details for MQ200-A1,5-266.300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MQ200-A1,5-266.300
  • Manufacturer
    AA Opto-Electronic
  • Description
    Free Space AO Modulator/Shifter from 266 to 300 nm

Fiber Parameters

  • Fiber Type
    Free Space

Temperature

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -40 to 65 Degree C

Physical Properties

  • Dimension
    47 x 60 x 53 mm
  • Weight
    60 g

Connections & Interface

  • RF Connector
    SMA, SMA - Female

General Parameters

  • Acousto-Optic Material
    Fused Silica
  • Modulation Bandwidth
    14.5 MHz
  • Separation Angle
    8.9 to 10 mrad
  • Rise Time
    33 to 137 ns
  • Applications
    Amplitude Modulation, Frequency Shifting, Pulse Picking
  • Beam Diameter
    0.3 to 1.25 mm
  • Optical Wavelength
    266 to 300 nm
  • Colors
    UV
  • Acoustic Velocity
    5.96µ mm / µsec
  • Active Aperture
    1.5 x 2 mm2
  • RF Power
    4 W
  • Extinction Ratio
    30 dB
  • Fall Time
    33 to 137 ns
  • Frequency Shift
    ±200 MHz
  • Input Impedance
    50 Ohms
  • Polarization
    Linear Vertical
  • Power Density
    0.5 W/mm²
  • RoHS
    Yes
  • VSWR
    1.20:1
