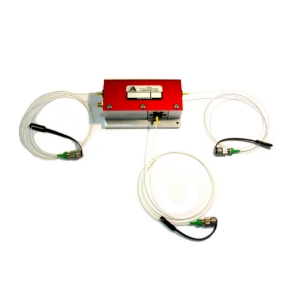

MT110-IR25-3Fio-xx

Acousto-Optic Modulator by AA Opto-Electronic
75 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AA Opto-Electronic.

The MT110-IR25-3Fio-xx from AA Opto-Electronic is a Acousto-Optic Modulator with Modulation Bandwidth 19 MHz, Rise Time 25 ns, Optical Wavelength 980 to 1100 nm, RF Power 2 W, Optical Power 0.5 / 5 W. More details for MT110-IR25-3Fio-xx can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MT110-IR25-3Fio-xx
  • Manufacturer
    AA Opto-Electronic
  • Description
    AO Fiber Pigtailed Modulator/Shifter Ir Range 1000-1100 Nm

Fiber Parameters

  • Fiber Coupled
    SM, PM
  • Fiber Type
    Fiber Coupled

Physical Properties

  • Dimension
    100 x 65 x 39 mm
  • Weight
    300 g

Connections & Interface

  • Optical Connector
    FC/ APC, FC/ PC
  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Modulation Bandwidth
    19 MHz
  • Rise Time
    25 ns
  • Applications
    Intensity modulation, Frequency Shifter, Pulse Picking
  • Optical Wavelength
    980 to 1100 nm
  • Colors
    IR
  • RF Power
    2 W
  • Optical Power
    0.5 / 5 W
  • Extinction Ratio
    10 to 50 dB
  • Fall Time
    25 ns
  • Frequency Shift
    ±110 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    2.5 to 3 dB
  • Polarization
    Random or Linear
  • VSWR
    1.20:1
