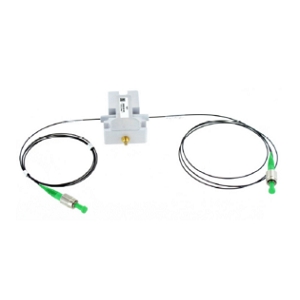

MT250-IR6-Fio-PM0,5-J1-A-Ic

Acousto-Optic Modulator by AA Opto-Electronic
75 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AA Opto-Electronic.

The MT250-IR6-Fio-PM0,5-J1-A-Ic from AA Opto-Electronic is a Acousto-Optic Modulator with Modulation Bandwidth 48 MHz, Rise Time 10 ns, Optical Wavelength 1030 to 1064 nm, RF Power 2.2 W. More details for MT250-IR6-Fio-PM0,5-J1-A-Ic can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MT250-IR6-Fio-PM0,5-J1-A-Ic
  • Manufacturer
    AA Opto-Electronic
  • Description
    Fiber Coupled AO Fiber Pigtailed Modulator/Shifter from 1030 to 1064 nm

Fiber Parameters

  • Fiber Type
    Fiber Coupled

Physical Properties

  • Dimension
    60 x 40 x 16 mm
  • Weight
    60 g

Connections & Interface

  • Optical Connector
    FC
  • RF Connector
    SMC

General Parameters

  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Modulation Bandwidth
    48 MHz
  • Rise Time
    10 ns
  • Applications
    Intensity modulation, Frequency Shifter
  • Optical Wavelength
    1030 to 1064 nm
  • RF Power
    2.2 W
  • Extinction Ratio
    45 to 50 dB
  • Fall Time
    10 ns
  • Frequency Shift
    ±200 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    3.5 to 6 dB
  • Polarization
    Linear
  • Polarization Extinction Ratio
    18 to 20 dB
  • RoHS
    Yes
  • VSWR
    1.20:1
