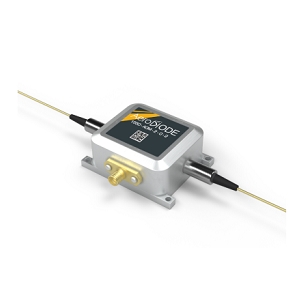

1550AOM-2

Acousto-Optic Modulator by AeroDIODE
11 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AeroDIODE.

The 1550AOM-2 from AeroDIODE is a Acousto-Optic Modulator with Operating Temperature -20 to 60 Degree C, Storage Temperature -30 to 70 Degree C, Rise Time 8 to 10 ns, Optical Wavelength 1470 to 1630 nm, RF Power 3 W. More details for 1550AOM-2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    1550AOM-2
  • Manufacturer
    AeroDIODE
  • Description
    Fiber coupled AOM for 1470-1630 nm laser light, PM1550 fiber and FC/APC connectors

Fiber Parameters

  • Fiber Coupled
    PM1550
  • Fiber length
    1 m
  • Fiber Type
    Fiber Coupled

Temperature

  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Dimension
    45 x 28 x 12 mm

Connections & Interface

  • Optical Connector
    FC/APC
  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Rise Time
    8 to 10 ns
  • Applications
    Q-switching and Pulse Picking
  • Optical Wavelength
    1470 to 1630 nm
  • RF Power
    3 W
  • Optical Power
    0.5 W
  • Extinction Ratio
    55 to 60 dB
  • Frequency Shift
    ±200 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    4 to 5 dB
  • Peak Optical Power
    0.5 KW
  • RF Bandwidth
    200 MHz
