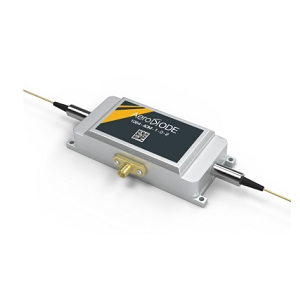

940AOM-1

Acousto-Optic Modulator by AeroDIODE

Note: Your Quotation Request will be directed to AeroDIODE.

The 940AOM-1 from AeroDIODE is a Acousto-Optic Modulator with Operating Temperature -20 to 60 Degree C, Storage Temperature -30 to 70 Degree C, Rise Time 45 to 50 ns, Optical Wavelength 900 to 980 nm, RF Power 1.5 to 1.8 W. More details for 940AOM-1 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    940AOM-1
  • Manufacturer
    AeroDIODE
  • Description
    Fiber coupled AOM for 900-980 nm laser light, PM980 fiber and FC/APC connectors

Fiber Parameters

  • Fiber Coupled
    PM980
  • Fiber length
    1 m
  • Fiber Type
    Fiber Coupled

Temperature

  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Dimension
    60 x 25 x 12.5 mm

Connections & Interface

  • Optical Connector
    FC/APC
  • RF Connector
    SMA

General Parameters

  • Acousto-Optic Material
    Tellurium Dioxide (TeO2)
  • Rise Time
    45 to 50 ns
  • Applications
    Q-switching and Pulse Picking
  • Optical Wavelength
    900 to 980 nm
  • RF Power
    1.5 to 1.8 W
  • Optical Power
    5 W
  • Extinction Ratio
    50 dB
  • Frequency Shift
    ±100 MHz
  • Input Impedance
    50 Ohms
  • Insertion Loss
    1 to 2 dB
  • Return Loss
    40 dB
  • RF Bandwidth
    100 MHz
