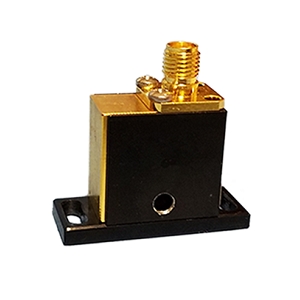

TEM-800-200

Acousto-Optic Modulator by Brimrose Corporation

Note: Your Quotation Request will be directed to Brimrose Corporation.

The TEM-800-200 from Brimrose Corporation is a Acousto-Optic Modulator with Modulation Bandwidth 200 MHz, Rise Time 3 ns, Optical Wavelength 380 to 1600 nm, Center Frequency up to 3.5 GHz. More details for TEM-800-200 can be seen below.

Product Specifications

Product Details

  • Part Number
    TEM-800-200
  • Manufacturer
    Brimrose Corporation
  • Description
    Free Space Acousto-Optic Modulators with RF Drivers

Fiber Parameters

  • Fiber Type
    Free Space

General Parameters

  • Acousto-Optic Material
    Quartz Crystal
  • Modulation Bandwidth
    200 MHz
  • Rise Time
    3 ns
  • Applications
    TTL/Digital Amplitude Modulation, Analog Amplitude Modulation, Photo Processing, Laser Displays, Micro Machining, Pulse Picking, OEM Designs
  • Optical Wavelength
    380 to 1600 nm
  • Colors
    UV, LWIR
  • Acoustic Velocity
    5.74 mm / µsec
  • Active Aperture
    0.05 mm
  • Input Impedance
    50 Ohms
  • Center Frequency
    up to 3.5 GHz

Technical Documents

Click to view more product details on manufacturer's website
