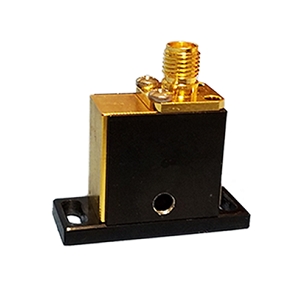

TEM-85-10

Acousto-Optic Modulator by Brimrose Corporation
26 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Brimrose Corporation.

The TEM-85-10 from Brimrose Corporation is a Acousto-Optic Modulator with Modulation Bandwidth 10 MHz, Diffraction Efficiency 0.8, Rise Time 55 ns, Optical Wavelength 380 to 1600 nm. More details for TEM-85-10 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TEM-85-10
  • Manufacturer
    Brimrose Corporation
  • Description
    Free space Acousto-Optic Modulator (AOM) offers the wavelength range from the ultraviolet to LWIR regions

Fiber Parameters

  • Fiber Type
    Free Space

General Parameters

  • Acousto-Optic Material
    Quartz Crystal
  • Modulation Bandwidth
    10 MHz
  • Diffraction Efficiency
    0.8
  • Rise Time
    55 ns
  • Applications
    TTL/Digital Amplitude Modulation, Analog Amplitude Modulation, Photo Processing, Laser Displays, Micro Machining, Pulse Picking, OEM Designs
  • Optical Wavelength
    380 to 1600 nm
  • Colors
    UV to NIR
  • Active Aperture
    1.0 mm
