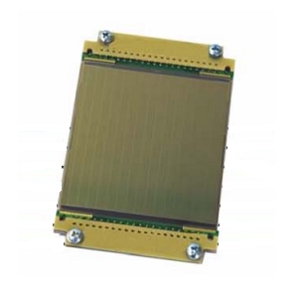

CCD2900A

CCD Image Sensor by ANDANTA
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ANDANTA.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD2900A
  • Manufacturer
    ANDANTA
  • Description
    16.52 MP UV-VIS-NIR Back Illuminated, Frame Transfer Sensors

General Parameters

  • Pixels :
    16.52 MP
  • Resolution
    4032(H) x 4096(V)
  • Pixel Size(H x V)
    15 µm x 15 µm
  • Package
    Multi-Pinned Phase
  • Sensor Type
    Back Illuminated Sensors, Frame Transfer Sensors
  • Frame Architecture
    Frame Transfer (FT)
  • Chroma
    Ultraviolet, Visible, Near-Infrared
  • Fill Factor :
    1
  • Power Supply Voltage
    15 to 30 V
  • Active Image Area
    60.48 x 61.44 mm2
  • Data Rate
    150 kHz
  • Full Well Capacity
    100 ke-
  • Readout Noise :
    <5 e-rms
  • Sensitivity
    7 µV/e-
  • Note
    Suggested Load Resistor: 3 to 20 kOhms
