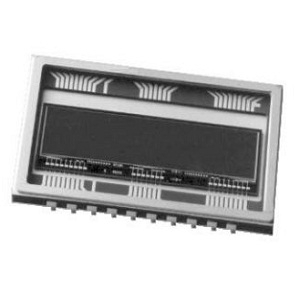

CCD30-11 (BI,AIMO)

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD30-11 (BI,AIMO) from Teledyne e2v is a CCD Image Sensor with Spectral Range 200 to 1060 nm. More details for CCD30-11 (BI,AIMO) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD30-11 (BI,AIMO)
  • Manufacturer
    Teledyne e2v
  • Description
    CCD30-11 Back Illuminated High Performance CCD Sensor

Applications

  • Applications
    Spectroscopy, Scientific Imaging, TDI Operation

General Parameters

  • Pixels :
    0.3 MP
  • Resolution
    1024 (H) x 256 (V)
  • Spectral Range
    200 to 1060 nm
  • Pixel Size(H x V)
    26 x 26 µm
  • Package
    20-pin DIL
  • Sensor Type
    Back Illuminated
  • Charge Transfer Efficiency :
    Parallel, Serial 99.9999%, 99.9993%
  • Power Supply Voltage
    output voltage: 750 mV
  • Window Material
    quartz or removable glass
  • Active Image Area
    26.6 x 6.7 mm
  • Package Size
    32.89 x 20.07 mm
  • Peak Charge Storage
    400 to 500 ke-/pixel
  • Pixel Readout Frequency :
    20 to 5000 kHz
  • Readout Noise :
    6 e-rms
  • Sensitivity
    1.5 µV/e-
