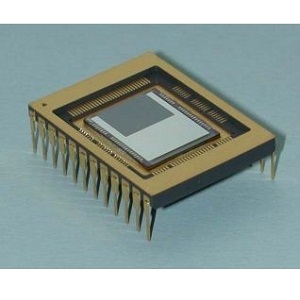

CCD67 (FI,AIMO,CP)

CCD Image Sensor by Teledyne e2v
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The CCD67 (FI,AIMO,CP) from Teledyne e2v is a CCD Image Sensor with Spectral Range 400 to 1100 nm. More details for CCD67 (FI,AIMO,CP) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CCD67 (FI,AIMO,CP)
  • Manufacturer
    Teledyne e2v
  • Description
    CCD67 Front Illuminated AIMO High Performance Compact Pack CCD Sensor

General Parameters

  • Pixels :
    0.1 MP
  • Resolution
    256 (H) x 256 (V)
  • Spectral Range
    400 to 1100 nm
  • Pixel Size(H x V)
    26 x 26 µm
  • Package
    Compact Ceramic
  • Sensor Type
    Front Illuminated
  • Frame Architecture
    Frame Transfer
  • Charge Transfer Efficiency :
    Parallel, Serial 99.9990%, 99.9993%
  • Power Supply Voltage
    output voltage: 0.9 V
  • Window Material
    temporary coverglass or 3 mm fibre-optic
  • Active Image Area
    268 (H) x 264 (V)
  • Package Size
    30.0 x 22.6 mm
  • Peak Charge Storage
    450 ke-/pixel
  • Pixel Readout Frequency :
    5 MHz
  • Readout Noise :
    12 e-rms
  • Sensitivity
    1.5 µV/e-

Physical Properties

  • Weight
    6 g
