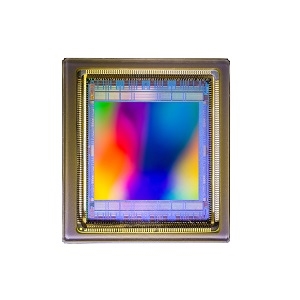

CSG8K

CMOS Image Sensor by ams AG

Note: Your Quotation Request will be directed to ams AG.

The CSG8K from ams AG is an 8.3 MegaPixel High-speed CMOS Image Sensor that is suitable for machine vision, and video applications. The image sensor consists of 3.2 µm pipelined global shutter pixels that allow exposure during readout while performing true CDS (Correlated Double Sampling) operation. It has a frame rate of 231 fps and supports SPI and sub-LVDS interfaces. The image sensor has 12-bit column-based ADCs to achieve high frame rates at full resolution enabling faster inspection and higher data throughputs. It consists of OB pixels for automatic black level and row noise corrections. The image sensor has a dual exposure HDR mode that can enhance its optical dynamic range and can capture fast-moving objects for better inspection and higher data throughputs. It is available in a 218-Pin LGA package that measures 22 x 20 x 3.3 mm and is ideal for 4K video, factory automation, intelligent transportation systems (ITS), and general machine vision applications.

Product Specifications View similar products

Product Details

  • Part Number
    CSG8K
  • Manufacturer
    ams AG
  • Description
    8.3 MegaPixel High-speed CMOS Image Sensor for Machine Vision

General Parameters

  • Resolution
    3856 (H) x 2176 (V)
  • Mega Pixels
    8.3 MP
  • Supply Voltage
    1.25 to 3.35 V
  • Optical Format
    3/4 Inch
  • Package Type
    LGA
  • Chroma
    RGB, Color, Bayer, Monochrome
  • Shutter Type
    Global Shutter
  • Frame Rate
    153 to 231 Frames/sec
  • ADC Resolution
    10 Bit, 12 Bit
  • Pixel Size
    3.2 x 3.2 µm
  • Pixel
    8.3 MP
  • Active Array
    3856 (H) x 2176 (V)
  • Dynamic Range
    69.1 dB
  • Type
    Digital Image Sensor
  • Data Rate
    0.25 to 1.25 Gbit/s
  • SNR
    40 dB
  • Clock Frequency
    12 to 20 MHz
  • Power Consumption
    2 W
  • RoHS
    Yes
  • Note
    Weight: 3.223 g

Connections & Interface

  • Interface
    Sub-LVDS

Applications

  • Application
    Machine Vision, High-End Inspection, Video / Broadcast, Security
  • Application Type
    Security

Temperature

  • Operating Temperature
    -30 to 85 Degree C
  • Storage Temperature
    -30 to 40 Degree C
