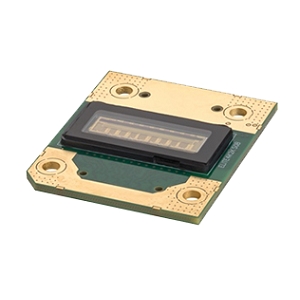

ELITE4k2k

CMOS Image Sensor by Teledyne e2v
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to Teledyne e2v.

The ELITE4k2k from Teledyne e2v is a CMOS Image Sensor with Mega Pixels 2K, 4K, Supply Voltage 1.8 to 3.3 V, Frame Rate 100000 to 200000 fps, Dynamic Range 68 dB, SNR 41 dB. More details for ELITE4k2k can be seen below.

Product Specifications View similar products

Product Details

  • Part Number
    ELITE4k2k
  • Manufacturer
    Teledyne e2v
  • Description
    ELITE4k2k hybrid CMOS sensor Back to all CMOS sensors

General Parameters

  • Resolution
    4096(H) x 8(V), 2048(H) x 8(V)
  • Mega Pixels
    2K, 4K
  • Supply Voltage
    1.8 to 3.3 V
  • Package Type
    COB
  • Chroma
    B/W, Color
  • Shutter Type
    Rolling shutter, Global shutter
  • Frame Rate
    100000 to 200000 fps
  • Pixel Size
    3.75 x 11.56 µm
  • Pixel
    2K, 4K
  • Dynamic Range
    68 dB
  • Type
    Line Scan Sensor, Digital Image Sensor
  • SNR
    41 dB
  • Power Consumption
    500 to 1000 mW

Applications

  • Application
    Food sorting, Document scanning, print inspection, Flat panel display, Check scanning, Electronics manufacturing, Medical (OCT, tissue diagnostics etc.)

Physical Properties

  • Package
    COB
