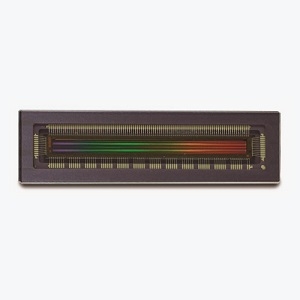

GL0402

CMOS Image Sensor by Gpixel Microelectronics Inc.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gpixel Microelectronics Inc..

The GL0402 from Gpixel Microelectronics Inc. is a CMOS Image Sensor with Data Rate 10.944 Gbps, Dynamic Range 60.7 to 66.5 dB, Supply Voltage 3.3 V for analog, 2 V for digital, 1.8 V to 3.3 V for IO. More details for GL0402 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    GL0402
  • Manufacturer
    Gpixel Microelectronics Inc.

General Parameters

  • Resolution
    4096 x 2
  • Optical Format
    28.67 mm
  • Shutter Type
    Global Shutter
  • Pixel Size
    7 µm x 7 µm
  • Line Rate
    100 kHz, 200 kHz
  • Data Rate
    10.944 Gbps
  • Dynamic Range
    60.7 to 66.5 dB
  • Chroma
    Monochrome, Bayer Color
  • Type
    Linear Image Sensors
  • Supply Voltage
    3.3 V for analog, 2 V for digital, 1.8 V to 3.3 V for IO
  • Power Consumption
    2.2 W
  • Package Type
    CLCC
  • Note
    Operation mode: - Single-line mode, Dual-line mode

Connections & Interface

  • Interface
    Sub-LVDS

Applications

  • Application
    Railway Inspection, Optical Coherence Tomography, Logistic
  • Application Type
    Machine Vision, Scientific

Physical Properties

  • Package
    76-pin CLCC
