PL-SOA-A-A81-W840-SASA

Optical Amplifier by LD-PD Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

The PL-SOA-A-A81-W840-SASA from LD-PD Inc is a Optical Amplifier with Noise Figure 7 to 9 dB, Saturated Output Power 8 to 10 dBm, Saturated Output Power 8 to 10 dBm, Gain 20 to 28 dB (fiber), Output Power 5 dBm. More details for PL-SOA-A-A81-W840-SASA can be seen below.

Product Specifications

Product Details

  • Part Number
    PL-SOA-A-A81-W840-SASA
  • Manufacturer
    LD-PD Inc
  • Description

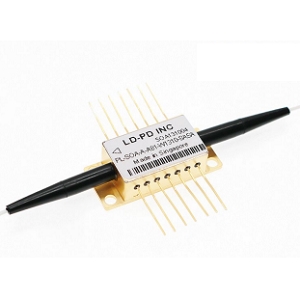

    840 nm Butterfly CW Semiconductor Optical Amplifier

General Parameters

  • 3dB Wavelength Bandwidth
    60 to 70 nm
  • Amplifier Type
    Semiconductor Optical Amplifier (SOA)
  • Connectors
    FC/APC
  • Output Type
    CW
  • Center Wavelength
    840 nm
  • Package Type
    Butterfly
  • Polarization Dependent Gain
    10 dB
  • Noise Figure :
    7 to 9 dB
  • Saturated Output Power
    8 to 10 dBm
  • Forward Voltage
    2.5 V
  • Saturated Output Power
    8 to 10 dBm
  • Package
    14-pin butterfly package
  • Polarization Dependancy
    Yes
  • Thermistor Resistance
    9.5 to 10.5 kOhms
  • Gain
    20 to 28 dB (fiber)
  • Output Power
    5 dBm
  • Output Power :
    5 dBm
  • Note
    LD Reverse Voltage: 1.8 V

Applications

  • Application
    Booster Amplifier, Telecom and Datacom, Loss Compensation

Environmental Conditions

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -20 to 85 Degree C

Fiber Parameters

  • Fiber Mode
    Single Mode
