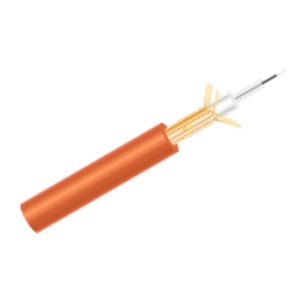

C25964

Fiber Optic Cable by OFS Global
83 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OFS Global.

The C25964 from OFS Global is a Fiber Optic Cable with Core Diameter 50 ± 3 µm, Coating Diameter 450 ± 25 µm, Cable Diameter 1.8 ± 0.1 mm, Operating Wavelength 850 nm, 1300 nm, Attenuation 4 to 6 dB/km. More details for C25964 can be seen below.

Product Specifications

Product Details

  • Part Number
    C25964
  • Manufacturer
    OFS Global
  • Description
    FlightGuide Simplex 1.8 mm Multimode 50/125 OM3

Applications

  • Applications
    Aircraft Sensors, Communication Systems, Corrosive Chemical, Environments, Data Transmission, Harsh Industrial Environments

General Parameters

  • Outer Jacket Material
    Ethylene Tetrafluoroethylene (ETFE)
  • Outer Cable Diameter
    1.8 ± 0.1 mm
  • Core Diameter
    50 ± 3 µm
  • Coating Diameter
    450 ± 25 µm
  • Cable Diameter
    1.8 ± 0.1 mm
  • Operating Wavelength
    850 nm, 1300 nm
  • Attenuation
    4 to 6 dB/km
  • Fiber Mode
    Multi Mode
  • Cladding Diameter
    125 ± 1 µm
  • Bend Radius Operation
    8 mm
  • Buffer Material
    ETFE
  • Buffer Tube Diameter
    900 ± 50 µm
  • Cable Type
    Simplex Cable, Tight Buffered Cable
  • Coating Material
    Carbon, Silicone
  • Construction
    Multimode Graded-Index Simplex
  • Fiber Proof Test
    >200 kpsi
  • Installation Load
    90 lb. (400 N)
  • Operating Load
    30 lb. (133 N)
  • Optical bandwidth
    >500 to 2000 MHz-km
  • Outer Jacket Color
    Orange
  • Weight
    4.0 kg/km

Environmental Conditions

  • Operating Temperature
    -55 to 165 Degree C
  • RoHs
    Yes
  • Storage Temperature
    -55 to 85 Degree C
