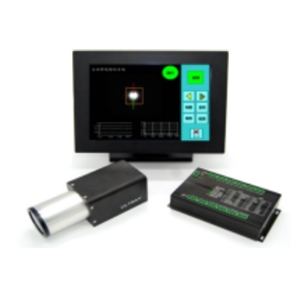

LT-1312

Laser Displacement Sensor by CNI Laser

Note: Your Quotation Request will be directed to CNI Laser.

The LT-1312 from CNI Laser is a Laser Displacement Sensor with Measure/Sensing Distance 1000 mm ±20 mm, Wavelength 405 nm, Resolution 100 µm, Supply Voltage 24 VAC, Laser Power 4.5 mW. More details for LT-1312 can be seen below.

Product Specifications

Product Details

  • Part Number
    LT-1312
  • Manufacturer
    CNI Laser

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Blue Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Measure/Sensing Distance
    1000 mm ±20 mm
  • Wavelength
    405 nm
  • Measurement Range
    ±20 mm
  • Resolution
    100 µm
  • Supply Voltage
    24 VAC
  • Analog Current
    0.2 A (Power)
  • Case and cover material
    Aluminum
  • Detector
    CCD
  • Diameter
    1.8 mm
  • Indicators
    4 status indicators
  • Laser Power
    4.5 mW
  • IP Rating
    IP67
  • Measuring Frequency
    250 Hz
  • Reference distance
    1000 mm
  • Relative Humidity
    15 to 95%

Connections & Interface

  • Interface
    RS-485

Environmental Conditions

  • Operating Temperature
    0 to 45 Degree C

Physical Properties

  • Weight
    1200 g
