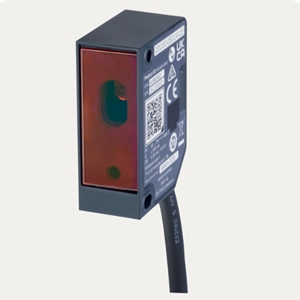

OD200-0501W15 | 6086980

Laser Displacement Sensor by SICK AG
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SICK AG.

The OD200-0501W15 | 6086980 from SICK AG is a Laser Displacement Sensor with Measure/Sensing Distance 35 to 65 mm, Wavelength 655 nm, Response Time >1 ms, Resolution 5 µm, Supply Voltage 18 to 24 VDC. More details for OD200-0501W15 | 6086980 can be seen below.

Product Specifications

Product Details

  • Part Number
    OD200-0501W15 | 6086980
  • Manufacturer
    SICK AG

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    35 to 65 mm
  • Wavelength
    655 nm
  • Response Time
    >1 ms
  • Resolution
    5 µm
  • Ambient illuminance
    10,000 lx (Artificial light, Sunlight)
  • Supply Voltage
    18 to 24 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Cable Length
    300 x 5.5 mm (L x Dia.)
  • Coax Cable Material
    PVC
  • Display
    OLED display, status LEDs
  • Housing Material
    Metal (Aluminum)
  • IP Rating
    IP67
  • Spot Size
    300 x 700 µm
  • Laser Class
    Class 1
  • Linearity
    ±30 µm
  • Measuring Frequency
    <3 kHz
  • Ouput time
    >0.5 ms
  • Power Consumption
    15 W
  • Relative Humidity
    35 to 85%
  • Ripples
    ±10%
  • Shock Resistance
    50 g, 11 ms
  • Temperature Drift/characteristics
    9 µm/K (Drift)
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm, 2 h
  • Warm up time
    <15 minutes
  • Window Material
    Plastic (PMMA)

Connections & Interface

  • Connector
    M12, 5-pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Dimensions
    18.4 x 46.4 x 33 mm (W x H x D)
  • Weight
    55 g
