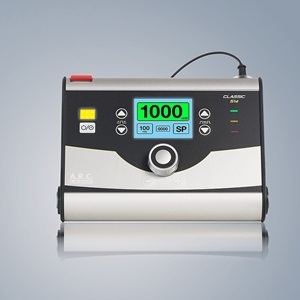

Classic 514nm

Laser by A.R.C. Laser
Request Quote

Note: Your Quotation Request will be directed to A.R.C. Laser.

The Classic 514nm from A.R.C. Laser is a Laser with Wavelength 514 nm, Power 1200 mW, Pulse Width 1 ms to 2 s, Repetition Rate 1 to 4 Hz. More details for Classic 514nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Classic 514nm
  • Manufacturer
    A.R.C. Laser
  • Description
    514 nm Laser System in Stand Alone Package

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Operation Mode
    Pulsed Laser
  • Wavelength
    514 nm
  • Power
    1200 mW
  • Pulse Width
    1 ms to 2 s
  • Repetition Rate
    1 to 4 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Gain Medium Type
    Gas Laser
  • Laser Cavity Material
    Argon Ion
  • Laser Gain Medium
    Molecular Lasers
  • Power Supply
    90 to 230 VAC
  • Note
    Aiming beam: 635 nm, <1 mW

Physical Properties

  • Package
    Stand Alone
  • Dimension
    250 x 170 x 220 mm (H x W x D)
  • Weight
    3.3 kg
