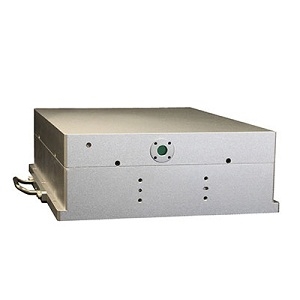

AP-1030P

Laser by AdValue Photonics

Note: Your Quotation Request will be directed to AdValue Photonics.

The AP-1030P from AdValue Photonics is a 1 μm Picosecond Fiber Laser that provides an output power of up to 50 watts. It provides a pulse energy of up to 50 μJ with a pulse repetition rate of 500 kHz to 1 MHz. The laser is available in a rugged OEM package and is ideal for 2.5D surface shaping, laser marking, laser cutting, drilling and scribing applications.

 Product Specifications

    Product Details

    • Part Number :
      AP-1030P
    • Manufacturer :
      AdValue Photonics
    • Description :
      EVERESTpico 1 µm Picosecond Fiber Laser (AP-1030P)

    General Parameters

    • Configuration :
      Laser Head with Control Unit (Integrated)
    • Type :
      Laser System
    • Operation Mode :
      Pulsed Laser
    • Ultrafast Laser :
      Picosecond Lasers
    • Wavelength :
      1.03 µm
    • Tunable :
      No
    • Fiber Coupled :
      Yes
    • Mode :
      Single Mode
    • Laser Color :
      Infrared
    • Power :
      10 to 50 W
    • Pulse Energy :
      30 to 50 µJ
    • Pulse Width :
      50 ps
    • Application :
      Laser cutting, drilling and scribing (glass, sapphire, silicon, silicon carbide, ceramics, nitinol stents, CFRP, PCD and CVD diamond), Laser thin film patterning (TCO, metal, thin film solar cells), 2.5D surface shaping (metals, ceramics, plastics), Laser marking (glass, sapphire, silicon carbide, silicon, metals, plastics)
    • Repetition Rate :
      500 kHz to 1 MHz
    • Warm up time :
      10 minutes
    • Beam Quality Factor (M2) :
      1.3
    • Modulation Frequency :
      50/60 Hz
    • Power Stability :
      0.05
    • Pulse Energy :
      30 to 50 µJ
    • Package :
      Benchtop
    • Power Supply :
      AC 100 to 240 V (50/60Hz)

    Physical Properties

    • Dimension :
      345 x 440 x 126 mm(W x D x H)

    Environmental Conditions

    • Cooling Method :
      Water Cooled
    • Operating Temperature :
      10 to 30 Degree C
    • Storage Temperature :
      5 to 70 Degree C
