AP-P-SF-1030

Note: Your Quotation Request will be directed to AdValue Photonics.

The AP-P-SF-1030 from AdValue Photonics is a Laser with Wavelength 1.03 µm, Power Up to 100 W, Pulse Energy 1.2 mJ, Pulse Width 2 to 300 ns, Repetition Rate 10 kHz to 1 MHz. More details for AP-P-SF-1030 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AP-P-SF-1030
  • Manufacturer
    AdValue Photonics
  • Description

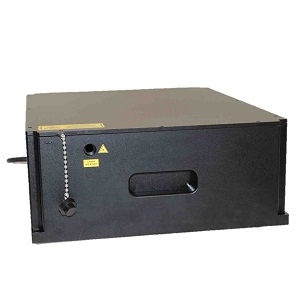

    Pulsed Single-Frequency Fiber Laser (AP-P-SF-1030)

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Nanosecond Lasers
  • Application Industry
    Defense / Military & Aerospace, Scientific / Research
  • Application
    LiDAR, Spectroscopy
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1.03 µm
  • Power
    Up to 100 W
  • Pulse Energy :
    1.2 mJ
  • Pulse Energy
    1.2 mJ
  • Pulse Width
    2 to 300 ns
  • Repetition Rate
    10 kHz to 1 MHz
  • Technology
    Solid State Laser
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization Orientation
    Linear
  • Gain Medium Type
    Solid State Laser
  • Warm up time
    10 minutes
  • Modulation Frequency
    50/60 Hz
  • Power Supply
    AC 100 to 240 V (50/60Hz)

Physical Properties

  • Package
    Benchtop
  • Dimension
    450 x 400 x 145 mm(W x D x H)

Environmental Conditions

  • Cooling Method
    Water Cooled
  • Operating Temperature
    10 to 35 Degree C
  • Storage Temperature
    -10 to 70 Degree C
