MicroGreen 30

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonic Sciences.

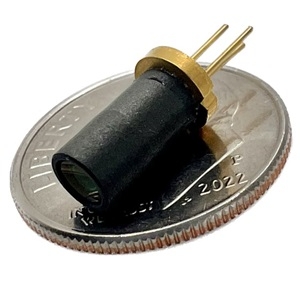

The MicroGreen 30 from Advanced Photonic Sciences is a Laser with Wavelength 532 nm, Power <30 mW, Operating Temperature 10 to 50 Degree C, Storage Temperature -40 to 80 Degree C. More details for MicroGreen 30 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MicroGreen 30
  • Manufacturer
    Advanced Photonic Sciences
  • Description
    532 nm DPSS Laser with <30 mW Power

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    <30 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization ratio :
    4:1
  • Beam Divergence :
    7.5 mrad
  • Beam Quality Factor (M2) :
    1.1
  • Current
    <290 mA
  • Laser Class
    CLASS IIIB
  • Warm up time
    <2 minutes
  • Power Consumption
    <0.65 W
  • RMS Noise Power
    <0.5% RMS
  • Voltage
    >2.2 V
  • Warranty
    1 Year

Physical Properties

  • Package
    TO56
  • Beam Diameter
    100 mm

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
