MiniGreen A50

Note: Your Quotation Request will be directed to Advanced Photonic Sciences.

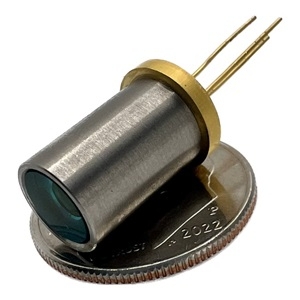

The MiniGreen A50 from Advanced Photonic Sciences is a Diode Pumped Solid State Laser that operates at a wavelength of 532 nm. It delivers an output power of 50 W and has a full angle beam divergence of 8 mrad. This laser produces a beam of diameter 100 &mum and has a beam quality factor (M2) of 1.4. It has a polarisation ratio of 4:1 and noise of less than 1% RMS. This laser has a residual leakage below 0.5% (at 1064 nm) and warm up time of less than 2 minutes. It requires a DC supply voltage of 2.2 V, consumes 0.6 A of current, and dissipates 1.3 W of power. This Class 3B laser is available in a Ø9 mm can package.

Product Specifications

View similar products

Product Details

  • Part Number
    MiniGreen A50
  • Manufacturer
    Advanced Photonic Sciences
  • Description
    532 nm Diode Pumped Solid State Laser

General Parameters

  • Type
    Laser Module
  • Configuration
    Laser Head
  • Operation Mode
    CW Laser
  • Wavelength
    532 nm
  • Power
    >50 mW
  • Technology
    DPSS Laser
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Green
  • Polarization ratio :
    4:1
  • Beam Divergence :
    8 mrad
  • Beam Quality Factor (M2) :
    1.4
  • Current
    <0.6 A
  • Laser Class
    CLASS IIIB
  • Warm up time
    <2 minutes
  • Power Consumption
    <1.3 W
  • RMS Noise Power
    <1% RMS
  • Voltage
    >2.2 V

Physical Properties

  • Package
    TO9
  • Beam Diameter
    100 mm

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -40 to 80 Degree C
