AL 200

Laser by Alpha Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Alpha Laser.

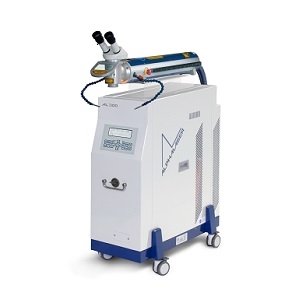

The AL 200 from Alpha Laser is a Laser with Wavelength 1064 nm, Power 200 W, Pulse Energy 90 J, Pulse Width 0.5 to 20 ms, Repetition Rate Single pulse to 100 Hz. More details for AL 200 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AL 200
  • Manufacturer
    Alpha Laser
  • Description
    1064 nm Near-Infrared Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Welding
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1064 nm
  • Power
    200 W
  • Pulse Energy :
    90 J
  • Pulse Energy
    90 J
  • Pulse Width
    0.5 to 20 ms
  • Repetition Rate
    Single pulse to 100 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Near-Infrared
  • Gain Medium Type
    Solid State Laser
  • Laser Cavity Material
    Nd:YAG
  • Laser Gain Medium
    Neodymium-Doped Laser
  • Current
    48 A
  • Peak Power
    9 kW
  • Power Supply
    1200 VAC, 50 to 60 Hz

Physical Properties

  • Dimension
    820 x 400 x 910 mm (W x D x H)
  • Weight
    120 kg
