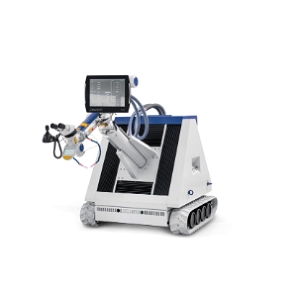

ALFlak 300 F

Laser by Alpha Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Alpha Laser.

The ALFlak 300 F from Alpha Laser is a Laser with Wavelength 1070 nm, Power 300 W, Output Power (CW) 300 W, Pulse Energy 30 J, Pulse Width 0.2 ms. More details for ALFlak 300 F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ALFlak 300 F
  • Manufacturer
    Alpha Laser
  • Description
    1070 nm Near-Infrared Laser System

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Automotive / Industrial & Manufacturing
  • Application
    Welding
  • Operation Mode
    CW Laser, Pulsed Laser
  • Wavelength
    1070 nm
  • Power
    300 W
  • Output Power (CW)
    300 W
  • Pulse Energy :
    30 J
  • Pulse Energy
    30 J
  • Pulse Width
    0.2 ms
  • Repetition Rate
    Single pulse to 100 Hz
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Near-Infrared
  • Gain Medium Type
    Solid State Laser
  • Current
    16 to 48 A
  • Peak Power
    3 kW
  • Power Supply
    1200 VAC, 50 to 60 Hz

Physical Properties

  • Dimension
    1200 x 1200 x 1150 mm (W x D x H)
  • Weight
    910 kg (with caterpillar track), 610 kg (without caterpillar track)
  • Beam Diameter
    0.1 to 4 mm
