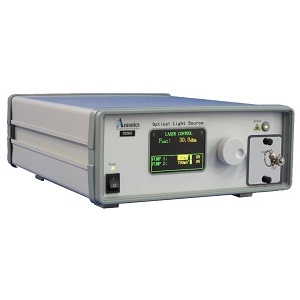

AULLD series

Laser by Amonics Limited
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Amonics Limited.

The AULLD series from Amonics Limited is a Laser with Wavelength 1528 to 1563 nm, Power 0.025 to 2 W, Output Power (CW) 0.025 to 2 W, Operating Temperature 0 to 40 Degree C, Storage Temperature -10 to 70 Degree C. More details for AULLD series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AULLD series
  • Manufacturer
    Amonics Limited

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Application Industry
    Scientific / Research, Defense / Military & Aerospace, Medical, Automotive / Industrial & Manufacturing, Communications
  • Application
    Sensing, LiDAR, Test & Measurement, Medical Imaging, Welding, Cutting, Drilling, Free-Space Optical Communication
  • Operation Mode
    CW Laser
  • Wavelength
    1528 to 1563 nm
  • Spectral Width :
    5 to 15 kHz
  • Power
    0.025 to 2 W
  • Output Power (CW)
    0.025 to 2 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Mode
    Single Mode
  • Laser Color
    Infrared
  • Polarization ratio :
    35 to 45 dB
  • Gain Medium Type
    Solid State Laser
  • Connectors
    FC/APC, FC/UPC, SC/APC, SC/UPC
  • Power Supply
    90 to 240 VAC
  • Note
    vv: Default (or unspecified) for single mode, PM for polarization maintaining, wwww: Wavelength in nm, xx: Laser linewidth, yyyy: Output power in mW, zz: FA for FC/APC, FC for FC/UPC, CL for collimator, SA for SC/APC, SC for SC/UPC

Physical Properties

  • Package
    Benchtop
  • Dimension
    260 x 330 x 120 mm(W x D x H)

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -10 to 70 Degree C
