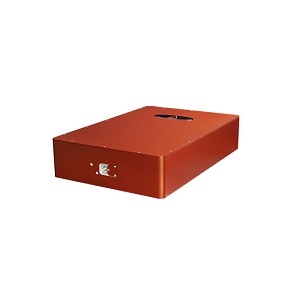

Magma 25

Laser by Amplitude Laser
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Amplitude Laser.

The Magma 25 from Amplitude Laser is a Laser with Wavelength 1030 nm, Pulse Energy 25 mJ, Pulse Width < 500 fs, Repetition Rate 100 Hz. More details for Magma 25 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Magma 25
  • Manufacturer
    Amplitude Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Integrated)
  • Ultrafast Laser
    Femtosecond Lasers
  • Application Industry
    Medical, Scientific / Research
  • Application
    Diagnosis, Medical Imaging, Spectroscopy, Fluorescence, Pumping Source
  • Operation Mode
    Pulsed Laser
  • Wavelength
    1030 nm
  • Pulse Energy :
    25 mJ
  • Pulse Width
    < 500 fs
  • Repetition Rate
    100 Hz
  • Tunable
    No
  • Fiber Coupled
    No
  • Laser Color
    Infrared
  • Beam Quality Factor (M2) :
    < 1.3
  • Gain Medium Type
    Solid State Laser
  • Energy Stability
    < 0.3 % rms
  • Peak Power
    > 50 GW

Physical Properties

  • Package
    Benchtop
  • Dimension
    120 x 50 x 22 cm

Environmental Conditions

  • Cooling Method
    Water-Cooled
