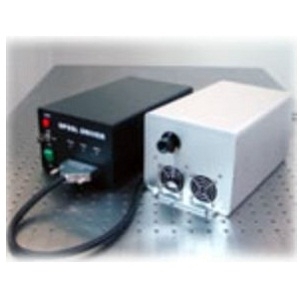

AZURE-B447W

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-B447W from AZURE Photonics is a Laser with Wavelength 447 nm, Power 0.008 to 0.02 W, Output Power (CW) 0.008 to 0.02 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-B447W can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-B447W
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Automotive / Industrial & Manufacturing, Entertainment
  • Operation Mode
    CW Laser
  • Wavelength
    447 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    0.008 to 0.02 W
  • Output Power (CW)
    0.008 to 0.02 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Beam Divergence :
    <2.0 x 0.5 mrad
  • Warm up time
    <5 Min
  • Analog Modulation
    TTL /Analog 1kHz~5kHz,1kHz~10kHz, 1kHz~30kHz, and TTL on/off
  • Power Stability
    <1%, <3%, <5%
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    90 to 264VAC or 5VDC
  • Voltage
    5 VDC
  • Note
    Beam Height: 93.5 mm

Physical Properties

  • Power Supply Dimension
    307 x 168 x 123 mm3(L x W x H)
  • Power Supply Weight
    5.1 kg
  • Dimension
    305 x 164 x 131 mm3(L x W x H)
  • Weight
    8.4 Kg
  • Beam Area
    6 x 5, 11 x 5, 11 x 10 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
