AZURE-G543III

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

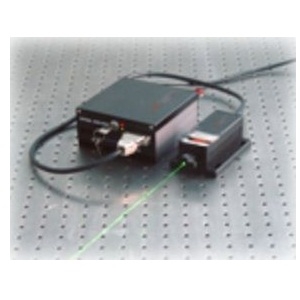

The AZURE-G543III from AZURE Photonics is a Laser with Wavelength 543 nm, Power 0.001 to 0.1 W, Output Power (CW) 0.001 to 0.1 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-G543III can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-G543III
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Medical, Scientific / Research
  • Application
    Bio-Medical, Flow Cytometry, DNA Sequencing, Spectroscopy, Particle Counting
  • Operation Mode
    CW Laser
  • Wavelength
    543 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    0.001 to 0.1 W
  • Output Power (CW)
    0.001 to 0.1 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Green
  • Transverse Mode
    TEM00
  • Beam Divergence :
    <1.5 mrad
  • Warm up time
    10 Min
  • Power Stability
    <1%, <3%, <5%, <10%
  • Pointing Stability :
    0.05 mrad
  • Power Supply
    90 to 264VAC or 5VDC
  • Voltage
    5 VDC
  • Note
    Beam Height: 24.8 mm

Physical Properties

  • Power Supply Dimension
    100 x 60 x 56 mm3
  • Power Supply Weight
    0.2 Kg
  • Dimension
    140.8 x 73 x 46.2 mm3(L x W x H)
  • Weight
    0.6 Kg
  • Beam Diameter
    1.2 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
