AZURE-L450F

Laser by AZURE Photonics
389 more products from this company
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

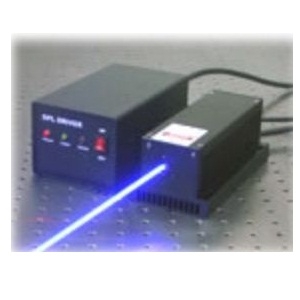

The AZURE-L450F from AZURE Photonics is a Laser with Wavelength 450 nm, Power 1 to 2 W, Output Power (CW) 1 to 2 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-L450F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-L450F
  • Manufacturer
    AZURE Photonics
  • Description
    Low noise blue laser at 450nm

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    450 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    1 to 2 W
  • Output Power (CW)
    1 to 2 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Polarization
    Horizontal ,Vertical
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    <1.5 mrad
  • Warm up time
    <5 Min
  • Analog Modulation
    TTL /Analog 1kHz~5kHz,1kHz~10kHz, 1kHz~30kHz, and TTL on/off
  • Power Stability
    <1%, <3%, <5%
  • Pointing Stability :
    0.05 mrad
  • RMS Noise Power
    <1% RMS
  • Power Supply
    90 to 264VAC or 5VDC
  • Voltage
    5 VDC
  • Note
    Beam Height: 45 mm

Physical Properties

  • Power Supply Dimension
    238 x 146 x 94 mm3
  • Power Supply Weight
    2.2 Kg
  • Dimension
    209 x 88 x 74 mm3(L x W x H)
  • Weight
    1.6 Kg
  • Beam Area
    4 x 4 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
