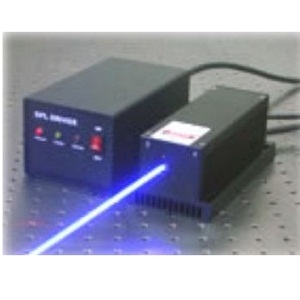

AZURE-L457F

Laser by AZURE Photonics
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-L457F from AZURE Photonics is a Laser with Wavelength 457 nm, Power 0.001 to 1 W, Output Power (CW) 0.001 to 1 W, Operating Temperature 10 to 35 Degree C. More details for AZURE-L457F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-L457F
  • Manufacturer
    AZURE Photonics
  • Description
    Low Noise Blue Laser

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate), OEM Laser Module
  • Application Industry
    Scientific / Research, Medical, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW Laser
  • Wavelength
    457 nm
  • Wavelength Accuracy
    ±1 nm
  • Power
    0.001 to 1 W
  • Output Power (CW)
    0.001 to 1 W
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Blue
  • Transverse Mode
    Near TEM00(Near TEM00 on request)
  • Beam Divergence :
    <1.5 mrad
  • Warm up time
    10 Min
  • Power Stability
    <3%, <5%, <10%
  • Pointing Stability :
    0.05 mrad
  • RMS Noise Power
    <3% RMS
  • Power Supply
    90 to 264VAC
  • Note
    Beam Height: 45 mm

Physical Properties

  • Power Supply Dimension
    238 x 146 x 94 mm3
  • Power Supply Weight
    2.2 Kg
  • Dimension
    209 x 88 x 74 mm3(L x W x H)
  • Weight
    1.6 Kg
  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
