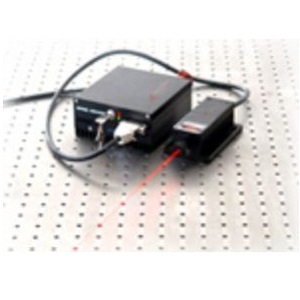

AZURE-L640III

Laser by AZURE Photonics
Request Quote

Note: Your Quotation Request will be directed to AZURE Photonics.

The AZURE-L640III from AZURE Photonics is a Laser with Wavelength 640 ±5 nm, Power 1 to 200 mW, Output Power (CW) 1 to 200 mW, Operating Temperature 10 to 35 Degree C. More details for AZURE-L640III can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AZURE-L640III
  • Manufacturer
    AZURE Photonics

General Parameters

  • Type
    Laser System
  • Configuration
    Laser Head with Control Unit (Separate)
  • Application Industry
    Scientific / Research, Environmental, Automotive / Industrial & Manufacturing
  • Operation Mode
    CW laser
  • Wavelength
    640 ±5 nm
  • Wavelength Accuracy
    ±5 nm
  • Power
    1 to 200 mW
  • Output Power (CW)
    1 to 200 mW
  • Tunable
    No
  • Fiber Coupled
    Yes
  • Laser Color
    Red
  • Transverse Mode
    Near TEM00
  • Beam Divergence :
    1 mrad
  • Warm up time
    <5 Min
  • Power Stability
    <1%,<3%,<5%
  • RMS Noise Power
    <1%rms
  • Power Supply
    90 to 264 VAC

Physical Properties

  • Power Supply Dimension
    133 x 130 x 65 mm3
  • Power Supply Weight
    1.2 kg
  • Dimension
    139 x 73 x 46.2 mm3
  • Weight
    0.6 Kg
  • Beam Area
    24.8 mm2
  • Beam Diameter
    3 mm

Environmental Conditions

  • Operating Temperature
    10 to 35 Degree C
